No matter what your end use is, Admat’s flat niobium sheets are manufactured to high standards which include ensuring that the material’s metallurgy fits your specific requirements and application.

Admat can meet all common industrial standards such as ASTM B393 R04210 or the more stringent ASTM B393 R04200 Reactor Grade specification. We can also adjust the manufacturing process to tweak certain mechanical properties, grain size or even chemistry.

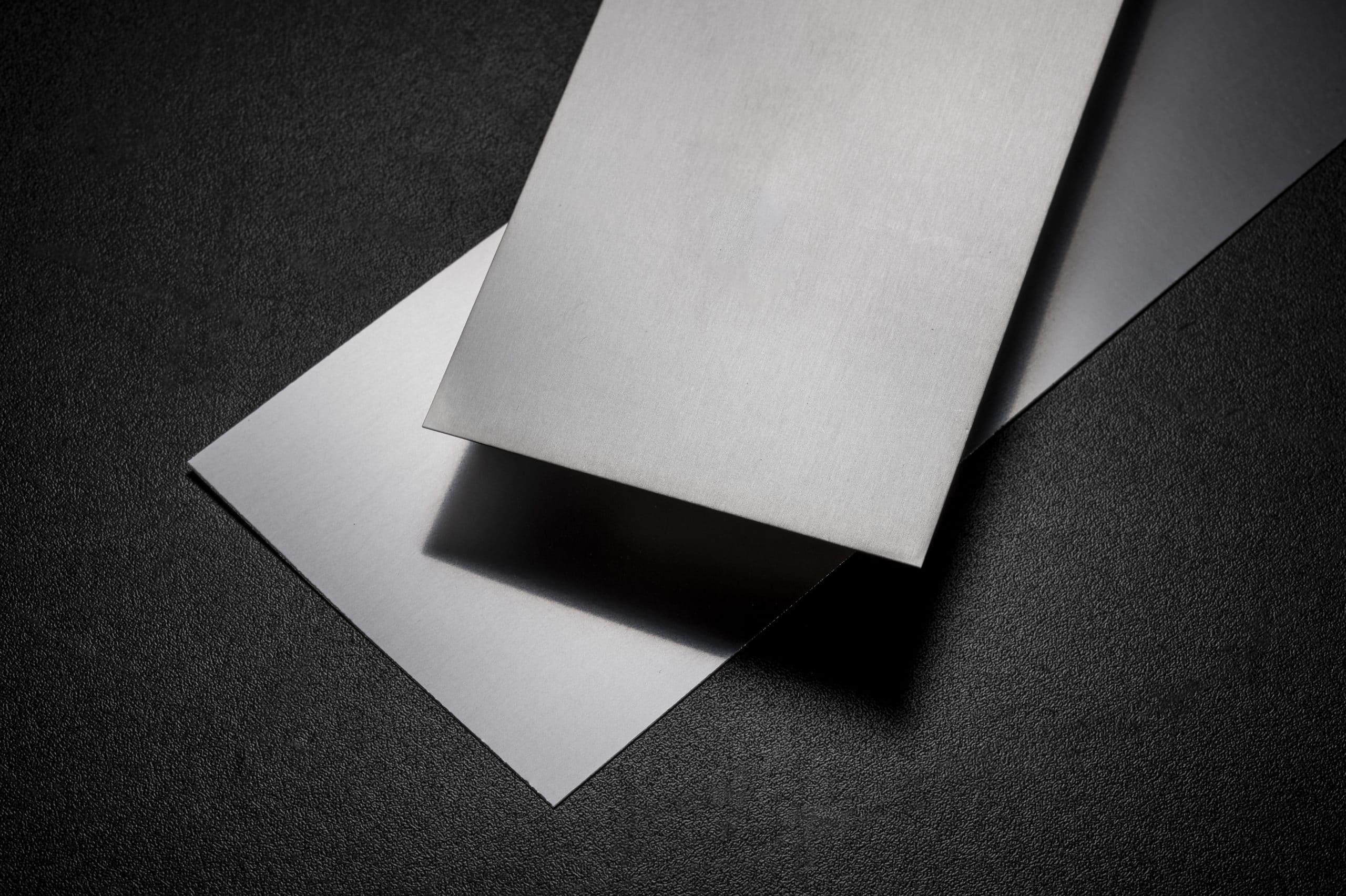

Our niobium sheets are cold rolled and vacuum annealed with proprietary reduction rates to ensure ideal metallurgy. Each sheet undergoes a stringent inspection for dimensions, surface finish, and flatness.

Our niobium titanium alloys and ultra-high purity niobium sheets (R04220 RRR Grade) are engineered for superconductor, supercollider, and high energy particle accelerator applications.

Whether you are building a tank in a chemical factory, coating glass for camera lenses, or building a supercollider, Admat has the right niobium sheet for you.

Our Niobium sheets are used in a wide variety of industries including:

  • Industrial Synthetic Diamonds
  • Superconductor and Supercollider
  • Thin Film Coatings for Glass and Fiber Optics
  • Nuclear Reactor
  • Jewelry
  • Chemical Processes
  • Commercial Lighting (sodium vapor)

Available Sizes
for Niobium Sheet and Plate

.002” – .003”
.002” to .009”
.004” to .009”
.100” and up
Maximum Width

Common Specifications

  • ASTM B393 R04200
    » Reactor Grade Pure Niobium
  • ASTM B393 R04210
    » Commercial Grade Pure Niobium
  • ASTM B393 R04251
    » Reactor Grade Nb 1% Zirconium
  • ASTM B393 R04261
    » Commercial Grade Nb 1% Zirconium
  • ASTM B393 R04220
    » RRR Grade pure Niobium

Available Alloys:

  • Niobium
  • Niobium 1% Zirconium
  • Niobium 47% Titanium
  • Niobium 50% Titanium
  • Niobium 55% Titanium
  • C-103 (89% Nb, 10% Hf, 1% Ti)
